Description

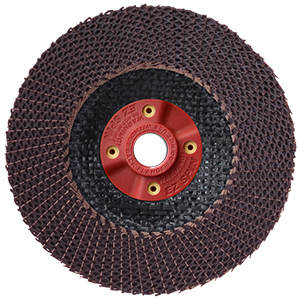

Revolutionary solution for grinding and finishing aluminum and soft metals. The symmetric net structure of ABRANET MAX enables an efficient cut for consistent stock removal and reduces the number of steps used for finishing aluminum. Lower pressure reduces operator fatigue. Long life of these discs results in fewer discs needed to complete job. This also saves time and money due to fewer changeovers.
Out of all the most unique characteristics of the alugrind dics is that they provide you with clog free grinding and generate very little heat. Melting of work piece surface is nonexistent.
No other abrasives can match alugrind when it comes to working on aluminum and other soft metals.
Grinding + Finishing
Non-Loading
Saves time
Saves money
Practical
Lightweight
Durable
INDUSTRIES:
Ship Building
Automotive
Aviation
Metal Fabrication
Construction
Energy
Food
Technology
APPLICATIONS:
Aluminum
Magnesium
Copper
Zinc
Lead
Composite
Carbon Fiber
Plastic
Rubber
Depending on the grinding angle and surface to be ground, Flap Discs are available in two types:
Type 27 – has flat surface and can achieve maximum efficiency when applied at a work angle of 0-15 deg angle. These discs are the most suitable for grinding flat surfaces.
Type 29 – has a slightly conical surface, for grinding at 10-25 deg angle. These discs are the most suitable for grinding contoured surfaces.
Specifications
| SIZES | 4 1/2" / 5" / 6" / 7" | TYPE: | Flat (Type 27) / Conical (Type 29) |
| ABRASIVE MATERIAL: | Abranet Max by MIRKA | DENSITY: | Standard |
| GRITS: | 40 / 60 / 80 / 120 | QUICK CHANGE | SAFE LOC / ZINC HUB |
| BACKING: | Fiberglass |
| MAX RPM. (OD in inches - RPM) | 4 1/2" - 13,300 / 5" - 12,200 / 6" - 10,200 / 7"- 8,500 |
Item Numbers Packaging and Availability
| Item # | Size | Grit | Type | Pkg. Qty. | Availability |
| AM445047 | 4 1/2 x 7/8 | 40 | T27F | 10 | STOCK |
| AM445067 | 4 1/2 x 7/8 | 60 | T27F | 10 | STOCK |
| AM445087 | 4 1/2 x 7/8 | 80 | T27F | 10 | STOCK |
| AM445127 | 4 1/2 x 7/8 | 120 | T27F | 10 | STOCK |
| AM450047 | 5 x 7/8 | 40 | T27F | 10 | 1-7 |
| AM450067 | 5 x 7/8 | 60 | T27F | 10 | 1-7 |
| AM450087 | 5 x 7/8 | 80 | T27F | 10 | 1-7 |
| AM450127 | 5 x 7/8 | 120 | T27F | 10 | 1-7 |
| AM460047 | 6 x 7/8 | 40 | T27F | 10 | 1-7 |
| AM460067 | 6 x 7/8 | 60 | T27F | 10 | 1-7 |
| AM460087 | 6 x 7/8 | 80 | T27F | 10 | 1-7 |
| AM460127 | 6 x 7/8 | 120 | T27F | 10 | 1-7 |
| AM470047 | 7 x 7/8 | 40 | T27F | 10 | 1-7 |
| AM470067 | 7 x 7/8 | 60 | T27F | 10 | 1-7 |
| AM470087 | 7 x 7/8 | 80 | T27F | 10 | 1-7 |
| AM470127 | 7 x 7/8 | 120 | T27F | 10 | 1-7 |
| AM445049 | 4 1/2 x 7/8 | 40 | 29F | 10 | STOCK |
| AM445069 | 4 1/2 x 7/8 | 60 | 29F | 10 | STOCK |
| AM445089 | 4 1/2 x 7/8 | 80 | 29F | 10 | STOCK |
| AM445129 | 4 1/2 x 7/8 | 120 | 29F | 10 | STOCK |
| AM450049 | 5 x 7/8 | 40 | 29F | 10 | 1-7 |
| AM450069 | 5 x 7/8 | 60 | 29F | 10 | 1-7 |
| AM450089 | 5 x 7/8 | 80 | 29F | 10 | 1-7 |
| AM450129 | 5 x 7/8 | 120 | 29F | 10 | 1-7 |
| AM460049 | 6 x 7/8 | 40 | 29F | 10 | 1-7 |
| AM460069 | 6 x 7/8 | 60 | 29F | 10 | 1-7 |
| AM460089 | 6 x 7/8 | 80 | 29F | 10 | 1-7 |
| AM460129 | 6 x 7/8 | 120 | 29F | 10 | 1-7 |
| AM470049 | 7 x 7/8 | 40 | 29F | 10 | 1-7 |
| AM470069 | 7 x 7/8 | 60 | 29F | 10 | 1-7 |
| AM470089 | 7 x 7/8 | 80 | 29F | 10 | 1-7 |
| AM470129 | 7 x 7/8 | 120 | 29F | 10 | 1-7 |
Add SAFE LOC (Patented), Quick Change
SAFE LOC is a 5/8″-11 threaded attachment for flap discs. Available for 4 1/2″, 5″, 6″ and 7″ discs with any backing type.
For Item with SAFE LOC Quick Change add S to the end of Item with 7/8″ Arbor Hole. e.g. Item: Z5045049 with 7/8″ AH will become Z5045049S with 5/8″-11 SAFE LOC.
For Item with 5/8″-11 Zinc Hub add H to the of Item with 7/8″ Arbor Hole. e.g. Item: Z5045049 with 7/8″ AH will become Z5045049H with 5/8″-11 Zinc Hub.
